Toolkit 1.10.1 bugs

Discussion in 'C-Bus Toolkit and C-Gate Software' started by Graham Lamb, Dec 16, 2008.

  1. Graham Lamb

    Graham Lamb

    Joined:
    Aug 3, 2004
    Messages:
    102
    Likes Received:
    14
    Location:
    Sydney, Australia
    Hi
    These are two problems that have reappeared in v1.9.3/1.10.0/1.10.1
    1. When you have the applications/application extended with a large number of GAs and you are live on the network it is difficult to find an address as the list keeps rolling up or down.
    2. The other problem is when creating scenes in reflection switches you have to create a trigger group/action selector otherwise you cannot save to network.
    Both these problems are time consuming and annoying on large projects
    Regards
    Graham Lamb

    Graham Lamb, Dec 16, 2008
    #1
  2. Graham Lamb

    ashleigh Moderator

    Joined:
    Aug 4, 2004
    Messages:
    2,402
    Likes Received:
    28
    Location:
    Adelaide, South Australia
    Thanks Graeme.

    #1 looks like we regressed. Its been traced back to a defect report that was acted on when it should have been rejected. That report undid a usability fix made in TK 1.7.0. We're working to restore order and balance to the universe here by undoing that change, this should appear in TK 1.10.2 if all goes according to plan.

    #2 is a bit more painful for a variety of reasons, but is scheduled in. It won't be in 1.10.2, unfortunately.

    Last edited by a moderator: Dec 17, 2008
    ashleigh, Dec 17, 2008
    #2
  3. Graham Lamb

    Dave Byron

    Joined:
    Aug 3, 2004
    Messages:
    835
    Likes Received:
    0
    Location:
    Casurina
    Deleting levels

    Getting a few places were Toolkit show levels in the left pane and nothing in the right pane, then if you try to delete the level its bi bi Toolkit and crash .

    dave


    Attached Files:

    Last edited by a moderator: Dec 22, 2008
    Dave Byron, Dec 22, 2008
    #3
  4. Graham Lamb

    Dave Byron

    Joined:
    Aug 3, 2004
    Messages:
    835
    Likes Received:
    0
    Location:
    Casurina
    DLT Sizes

    In the main section of Toolkit it shows the DLT text "Sensor Off" as not fitting into the DLT switch but when you look in the switch it says it will fit.
    The display in the switch is incorrect

    dave


    Attached Files:

    Dave Byron, Dec 22, 2008
    #4
  5. Graham Lamb

    zip_cool

    Joined:
    Sep 14, 2006
    Messages:
    80
    Likes Received:
    0
    in this toolkit, i have found a problem to, i don't know, it come from the sofware or hardware,
    this is really wierd to me...
    in my project which have 4 c-bus network, one of the 8 gang neo key input in the first network always roll back to previous program when there is power failure in the site.

    so every time there is a power failure, i must upload the new program in to it. if not the program inside will roll back to the previous one ( the one i program using previous version toolkit. )

    any adviced???

    thanks

    zip_cool, Dec 22, 2008
    #5
  6. Graham Lamb

    ashleigh Moderator

    Joined:
    Aug 4, 2004
    Messages:
    2,402
    Likes Received:
    28
    Location:
    Adelaide, South Australia
    This is nothing to do with Toolkit. The settings are stored in the units at the time Toolkit loads the programming into them. Rolling back after that is not possible. There is something else strange going on. We need more information.

    ashleigh, Dec 22, 2008
    #6
  7. Graham Lamb

    filpee

    Joined:
    May 31, 2006
    Messages:
    204
    Likes Received:
    0
    Location:
    Western Australia

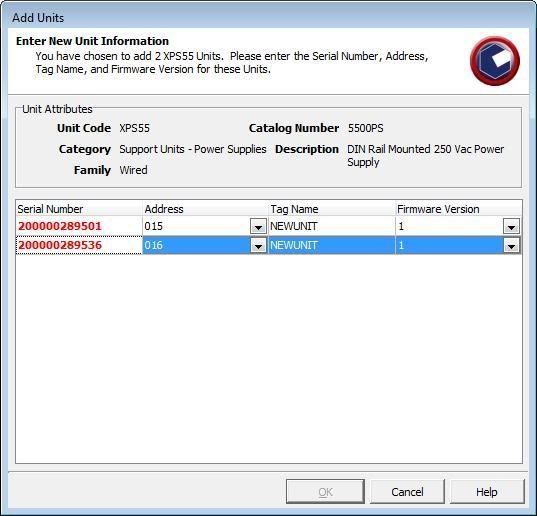

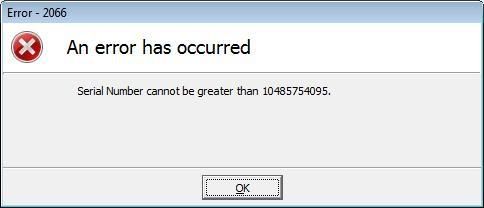

    Adding multiple power supply units the dialog complains that the serial number is incorrect.

    Changing the power supply serial number in the power supply dialog also generates an error.

    Note that using the scanner the serial number is entered in correctly.

    [​IMG]

    [​IMG]

    Last edited by a moderator: Jan 21, 2009
    filpee, Jan 21, 2009
    #7
  8. Graham Lamb

    daniel C-Busser Moderator

    Joined:
    Jul 26, 2004
    Messages:
    770
    Likes Received:
    21
    Location:
    Adelaide
    Hi filpee,

    Thanks for reporting that. This is because the XPS is actually not a CBus unit and as such is produced with serial numbers that don't fit the C-Bus rules.

    This problem (#15953) should be fixed in the next release of Toolkit.

    In the meantime I'm told the workaround is to add units one by one, in this way you won't trigger the serial number validation.

    Sorry for the inconvenience :(

    daniel, Jan 21, 2009
    #8
