EasyConnect Digital I/O board

Introducing our new EasyConnect board. This allows you to use a standard Clipsal 5102BCLEDL Bus Coupler and use it to provide two non-floating voltage digital inputs and two solid state relay outputs, all being powered from the C-Bus system.

The allows easy connection possibilities to all sorts of miscellaneous gadgets such as garage door openers, electric gates, alarm systems - anything that gives a voltage signal out and/or needs a contact closure as an input.

We've written a detailed spec sheet, installation instructions, and even a application note showing how to get it all working in a typical project.

Hope this solves some of your problems! Documents, photos, and other details here:

https://vivisys.com.au/easyconnectboard/

Cheers,

Phil

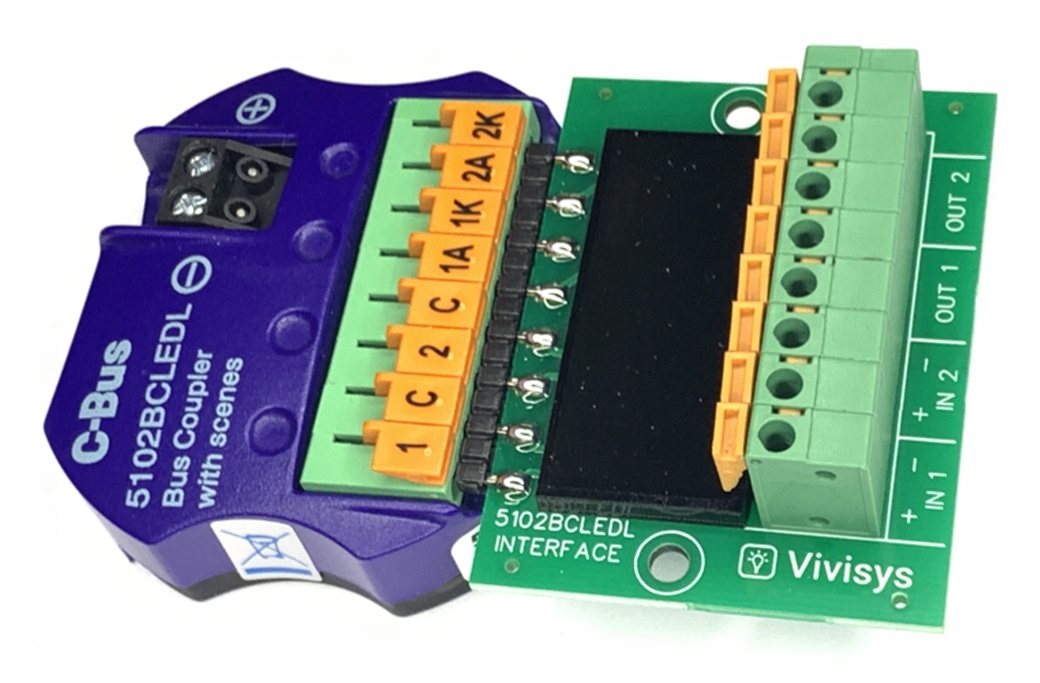

I should really have put a photo here to show what I'm talking about!
