Connect AC Panasonic model CS-PC9JKJ by NIRT

Discussion in 'Infrared (NIRT, IR Reader) and CIRCA' started by leonardodonny, Dec 21, 2012.

  1. leonardodonny

    leonardodonny

    Joined:
    Nov 29, 2012
    Messages:
    20
    Likes Received:
    0
    Location:
    Jakarta, Indonesia
    Hi C-BUS Forum,
    I can't control my Panasonic Airconditioner from Widget.
    I assume i have to connect it by NIRT.

    Does anyone know how to connect it?
    Looking forward for the answer. :D
    [​IMG]

    leonardodonny, Dec 21, 2012
    #1
  2. leonardodonny

    Matthew

    Joined:
    Oct 26, 2007
    Messages:
    260
    Likes Received:
    1
    Location:
    Adelaide
    how the NIRT works

    The NIRT is a C-Bus connected "output" module, converting a c-bus issued command into an IR command.
    Program the NIRT using "CIRCA" software, you need a special download cable.
    Install and wire to C-Bus the NIRT module near your device to be controlled.
    Plug an Infrared transmitter cable onto the NIRT and then install the Infrared transmitter head onto/near the IR receiver window on your AC unit.

    hope that helps:)

    Matthew, Jan 9, 2013
    #2
  3. leonardodonny

    leonardodonny

    Joined:
    Nov 29, 2012
    Messages:
    20
    Likes Received:
    0
    Location:
    Jakarta, Indonesia
    Hi Matthew thank you for your response.
    I have figure out how to connect the Panasonic air conditioner by NIRT.

    I'll Share how i have figured out.

    -I have made new IR Maps Project in Circa software.

    -I have to stick the infared IR emmiter to my Panasonic Air conditioner.

    -I have to plug the IR emmiter to NIRT 5034.

    -I have to transfer this project to NIRT 5034 by CBus IR programming cable.

    So Here are the Image view.

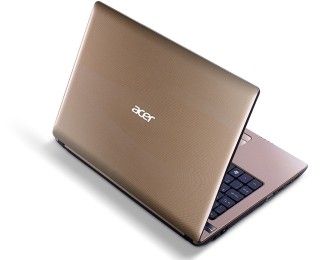

    Laptop
    [​IMG]

    CBus IR programming cable​
    [​IMG]

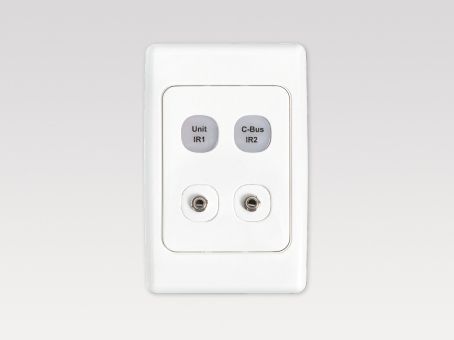

    NIRT 5034​
    [​IMG]

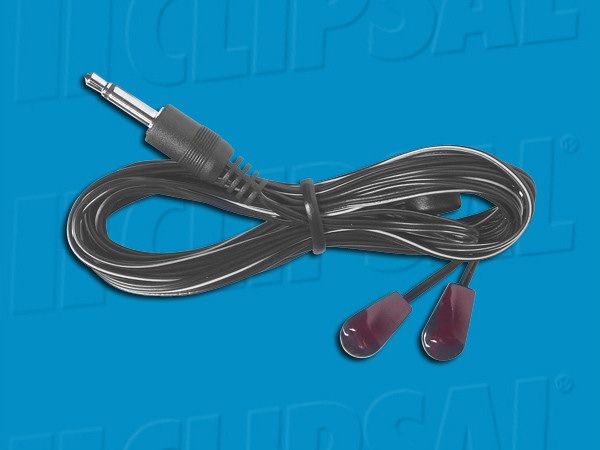

    CBus IR Emmiter​
    [​IMG]

    Panasonic air conditioner​
    [​IMG]

    -Unfortunately i've got an error while trying to transfer the project

    [​IMG]

    After browsing the forum i figure out i have to plug usb serial port to my laptop.
    Well it is not a logic answer but it works.
    The Project have been transfer successfully to AC.

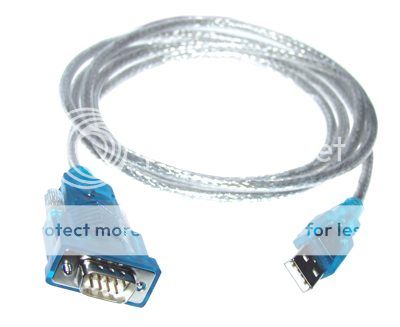

    USB Serial Port
    [​IMG]

    -But i've got another issue and i have'nt figure out how to solve it.

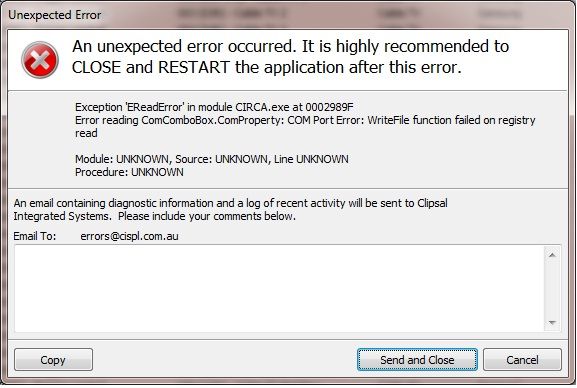

    -well I tried to test the IR Maps command in Circa, but i've got this error.

    [​IMG]

    Does somebody know how to fix this. Looking forward for the answer. :D
    [​IMG]

    Last edited by a moderator: Jan 9, 2013
    leonardodonny, Jan 9, 2013
    #3
